Low-Voltage Landscape Lighting: Plan & Install

Before diving into any outdoor lighting installation, careful planning is essential to create both a functional and aesthetically pleasing landscape lighting design. According to the Illuminating Engineering Society (IES), proper lighting placement can increase property value by up to 20% while enhancing safety and security.

Start by walking your property at night with a flashlight to identify key areas that need illumination. Professional landscape designers recommend focusing on three main lighting purposes: safety, security, and aesthetics. Mark these locations on a simple sketch of your property, including walkways, steps, entry points, and architectural features you want to highlight.

Calculate the total wattage needed by adding up the wattage of all planned fixtures. Most low-voltage systems operate on 12-volt power, and industry experts suggest keeping the total wattage at 80% or less of the transformer’s capacity. For example, if you’re using a 300-watt transformer, your total fixture wattage shouldn’t exceed 240 watts.

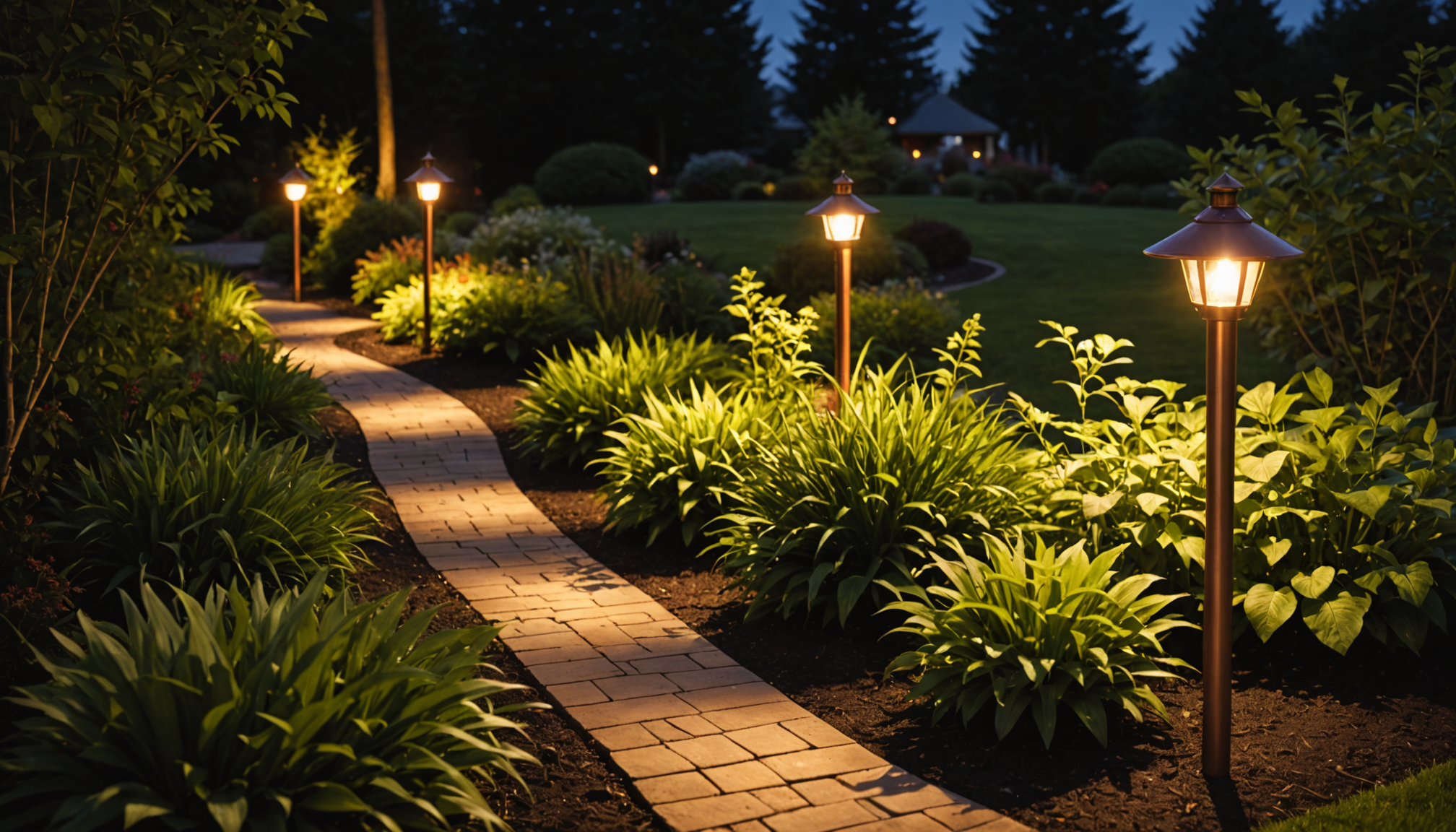

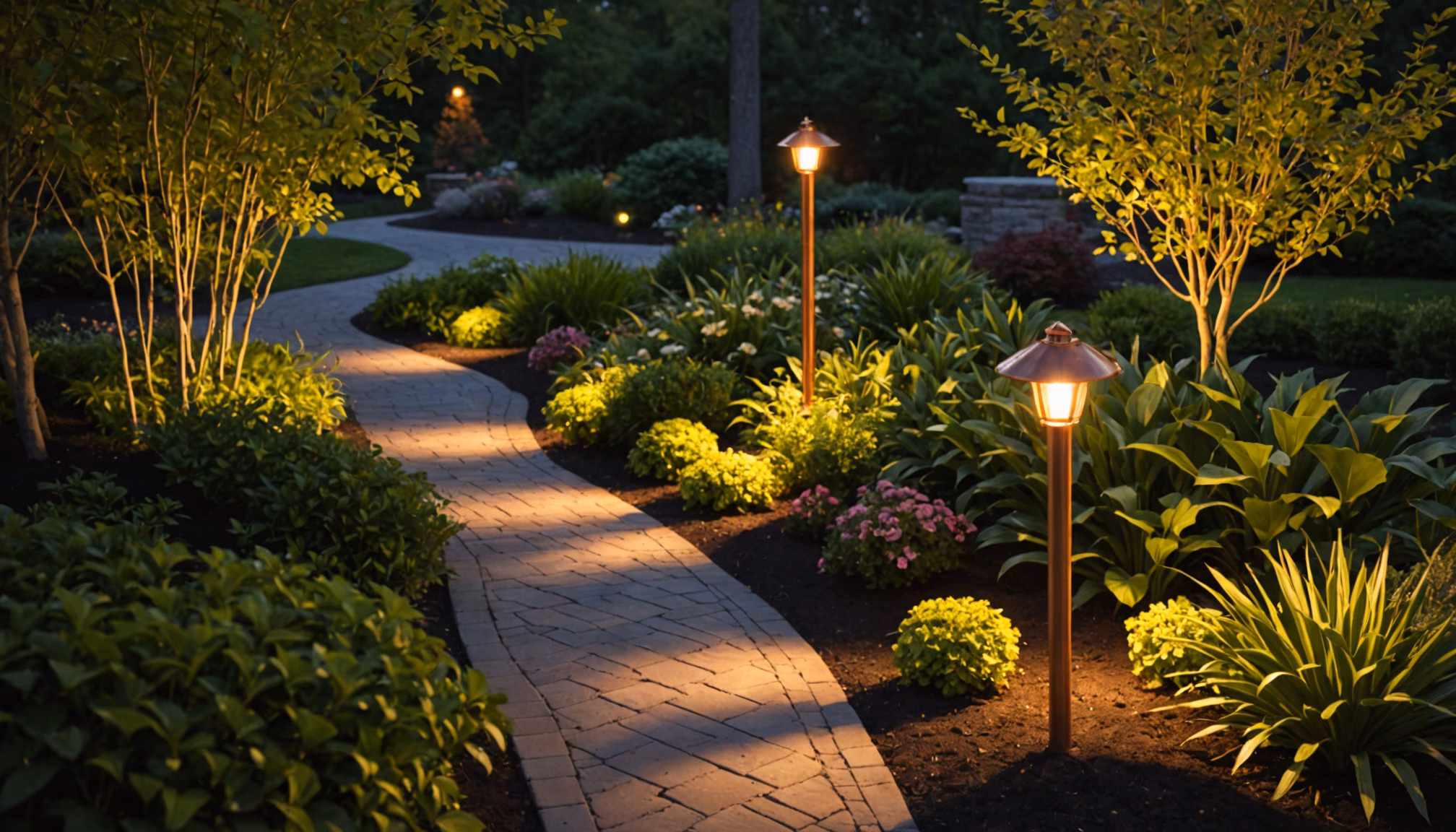

  • Pathways and steps: Place lights 6-8 feet apart for even illumination
  • Trees and focal points: Position uplights 12-18 inches from the base
  • House walls: Space wash lights 4-6 feet apart for consistent coverage
  • Garden areas: Use adjustable spotlights 10-15 feet apart

Consider voltage drop in your layout, which occurs as electricity travels through the cable. The American Lighting Association recommends keeping cable runs under 100 feet when possible, and using heavier gauge wire for longer distances. Position your transformer centrally to minimize voltage drop to the furthest fixtures.

Create separate lighting zones based on usage patterns and timing needs. This allows for more efficient energy management through programmable controls. The Department of Energy reports that well-planned low-voltage landscape lighting can reduce outdoor lighting energy consumption by up to 50% compared to traditional high-voltage systems.

Document your final plan with precise measurements and fixture locations. Include notes about soil conditions and obstacles like irrigation systems or tree roots that might affect installation. Professional installers recommend adding 10% extra cable length to your calculations to account for curves and elevation changes.

Materials and tools needed

To ensure a successful low-voltage landscape lighting installation, gathering the right materials and tools beforehand is crucial. A complete lighting system requires several essential components, starting with a UL-listed low-voltage transformer that matches your total wattage requirements. Select outdoor-rated lighting cable, typically 12- or 14-gauge, depending on your system’s length and power demands.

Quality lighting fixtures are paramount – choose weatherproof, corrosion-resistant units designed specifically for outdoor use. LED bulbs are recommended for their energy efficiency and long lifespan, typically lasting 25,000 to 50,000 hours. Include waterproof wire connectors and silicon-filled wire nuts to ensure safe and reliable connections in wet conditions.

For the installation process, you’ll need basic hand tools including wire strippers, a cable cutter, and a voltage meter for testing connections. A trenching shovel or edger is essential for burying cables, while a hammer and stakes help secure fixtures. Don’t forget safety equipment such as work gloves, safety glasses, and a sturdy ladder for mounting the transformer.

See also  Convert Sprinkler Heads to Drip Near Foundations

Consider purchasing additional accessories like timers or smart controllers for automated operation. Include extra wire connectors and bulbs as spares, and acquire landscape staples to secure cables where they can’t be buried. Professional installers recommend having electrical tape, a circuit tester, and wire labels on hand to ensure proper connections and future maintenance ease.

  • Always verify tool voltage ratings match your system requirements for safety
  • Keep spare waterproof wire connectors and silicon-filled wire nuts for maintenance
  • Use outdoor-rated equipment and materials certified for wet locations
  • Include a multimeter or voltage tester for system troubleshooting

Preparing the power source

A reliable power source is essential for outdoor lighting performance and safety. One of the most frequent mistakes homeowners make is connecting the transformer to an indoor outlet using an extension cord, which violates electrical codes and creates safety hazards. Instead, install a dedicated GFCI outlet on a weatherproof exterior box, mounted at least 12 inches above ground level to prevent water exposure.

Many DIY installers overlook the importance of proper circuit selection. Avoid connecting your low-voltage lighting system to circuits that power major appliances or have heavy electrical loads. The National Electrical Code recommends using a dedicated 15-amp circuit for landscape lighting to prevent overloading and ensure consistent power delivery.

Another common error is failing to verify the outlet’s voltage stability. Fluctuating power can reduce fixture lifespan and cause system malfunctions. Use a multimeter to test the outlet, ensuring it consistently provides between 110-120 volts. Some homeowners skip this step, leading to premature equipment failure and poor lighting performance.

Weatherproofing is often inadequately addressed. Always use approved outdoor covers for electrical boxes and ensure proper sealing. The cover should be rated for “while-in-use” applications and include rubber gaskets to prevent moisture intrusion. Many people use standard covers, which don’t provide adequate protection during rain or irrigation.

Timing of installation also matters. Some attempt electrical work during wet conditions, increasing shock risks. Schedule installation during dry weather and ensure the work area remains dry throughout the process. Professional electricians recommend:

  • Testing the GFCI outlet monthly to ensure proper operation
  • Keeping the area around the power source clear of vegetation
  • Marking the circuit breaker clearly for future reference
  • Installing the outlet away from irrigation sprinkler patterns

Remember that improper power source preparation can void equipment warranties and create safety hazards. Following local electrical codes and manufacturer specifications is crucial for long-term system reliability and safety compliance.

See also  Replace a Rotted Deck Board Safely

Installing the transformer

Start by mounting the transformer at a convenient height, typically 12-18 inches above the GFCI outlet, using sturdy mounting screws and anchors rated for outdoor use. The National Electrical Code requires transformers to be installed at least 12 inches above ground level for safety and protection from water exposure. Choose a location that’s easily accessible for maintenance but sheltered from direct weather exposure.

Proper grounding is crucial for low-voltage lighting system safety. Connect the transformer’s ground wire to the outlet’s ground terminal, ensuring a secure connection. Many homeowners overlook this critical step, which can lead to potential safety hazards during electrical storms or power surges.

When connecting the power cable to the transformer, strip the wire insulation carefully, exposing exactly the length specified by the manufacturer. Too much exposed wire can create short circuits, while too little may result in loose connections. Use a wire stripper calibrated for the correct gauge to avoid damaging the conductors.

Set up the transformer’s timer or smart controls before finalizing the installation. Most modern units feature multiple timing options and light sensors. Program different zones to operate independently, maximizing energy efficiency. For example, pathway lights might run from dusk until midnight, while security lighting continues until dawn.

Test the transformer’s voltage output using a multimeter before connecting any fixtures. Most low-voltage systems operate at 12-15 volts, and proper voltage is essential for optimal fixture performance. Make adjustments using the transformer’s voltage taps if necessary:

  • 12V tap for cable runs under 50 feet
  • 13V tap for runs between 50-100 feet
  • 14V tap for runs over 100 feet
  • 15V tap for very long runs with significant voltage drop

Professional installers emphasize the importance of labeling all connections and keeping detailed records of voltage tap settings. This documentation proves invaluable during future maintenance or system expansion. With your transformer properly installed and configured, you’re ready to create a beautiful and safe outdoor lighting display that will enhance your landscape for years to come.

Running the low-voltage cable

How deep should I bury my landscape lighting cable?
The standard burial depth for low-voltage landscape lighting cable is 6 inches below ground level. In areas with frequent ground maintenance or cultivation, consider burying the cable up to 12 inches deep for added protection.
Can I connect multiple cables to my transformer?
Most outdoor lighting transformers have multiple terminals that allow for separate cable runs. This configuration helps minimize voltage drop and allows for better control of different lighting zones, but ensure you don’t exceed the transformer’s total wattage capacity.
What’s the maximum distance I can run low-voltage cable?
The recommended maximum cable run for 12-volt landscape lighting is 100 feet using 12-gauge wire. Longer runs can result in significant voltage drop, affecting fixture performance, but using larger gauge wire (10-gauge) can extend this distance to about 150 feet.
Do I need special connectors for underground cable connections?
Yes, outdoor lighting cable connections must use waterproof connectors specifically designed for direct burial. Silicon-filled wire nuts or gel-filled connectors are essential for preventing moisture intrusion and maintaining safety in wet conditions.
How do I test my cable run before connecting fixtures?
Use a voltage meter to test the cable voltage at various points along the run before connecting fixtures. Testing helps identify potential voltage drop issues and ensures proper power distribution throughout your lighting system.
See also  Privacy Fence Options: Panels, Screens & Hedges

Placing and connecting light fixtures

Once your cable layout is complete, it’s time to bring your outdoor lighting design to life by installing and connecting the fixtures. Position each light according to your plan, keeping safety clearances from sprinklers and lawn maintenance areas. Professional installers recommend starting with the fixtures closest to the transformer to ensure proper voltage distribution.

Before connecting any fixtures, test each location with a voltage meter to confirm adequate power delivery. The voltage should measure between 10.8 and 12 volts for optimal performance. Make any necessary adjustments to fixture placement or cable routing if readings fall outside this range.

When mounting fixtures, use the manufacturer-provided stakes or mounting hardware. Drive stakes firmly into the ground at a slight angle facing the intended illumination target. For tree-mounted fixtures, use proper tree-mounting brackets that allow for growth without damaging the bark. Remember to:

  • Leave 2-3 feet of extra cable at each fixture for future adjustments
  • Create drip loops in the cable to prevent water from running into connections
  • Use silicone-filled wire connectors for all splices
  • Secure loose cables with landscape staples every 4-5 feet

Connect fixtures to the main low-voltage cable using manufacturer-approved connection methods. Strip wire insulation carefully, ensuring clean copper contacts for reliable connections. Many professional installers prefer plug-in connectors for their reliability and ease of maintenance, though traditional wire nuts with silicon sealant also work well when properly installed.

Test each fixture immediately after connection by temporarily energizing the system. Adjust fixture angles and positions while observing the lighting effect. Some fixtures may require additional stabilization or repositioning to achieve the desired illumination pattern. Industry experts recommend viewing the lighting from multiple angles and distances to ensure optimal placement.

Finally, conceal all exposed cables by burying them under mulch or soil, maintaining a consistent 6-inch depth. This protects the wiring from damage while allowing for future access if needed. Label each fixture location on your layout plan for easier maintenance and troubleshooting.
